An aerial bucket truck is a truck-mounted aerial work platform that lifts an insulated or non-insulated bucket to height on a hydraulic boom. Utility, municipal and telecom fleets specify these machines by working height, insulation, boom type and chassis, and this reference compares those four decisions side by side, anchored by the 33.8-metre Sinotruk Howo GKS35 Pro, so you can shortlist the right aerial bucket trucks before requesting a quote.
A truck-mounted aerial work platform carries operators to the work position on a hydraulic boom, and hydraulic outriggers stabilise the chassis once the truck is parked on site. Buyers rarely need every option; they need to match a height class, an insulation requirement, a boom and control package, and a chassis to one job. Each section below handles one of those decisions and jumps straight to the reference table you need.

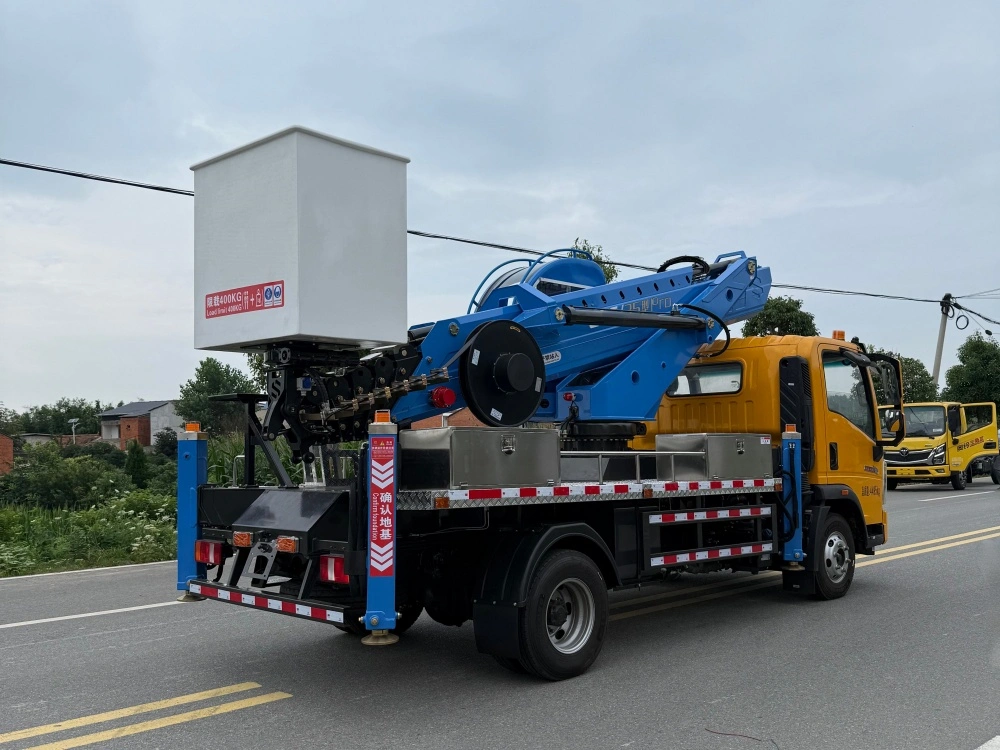

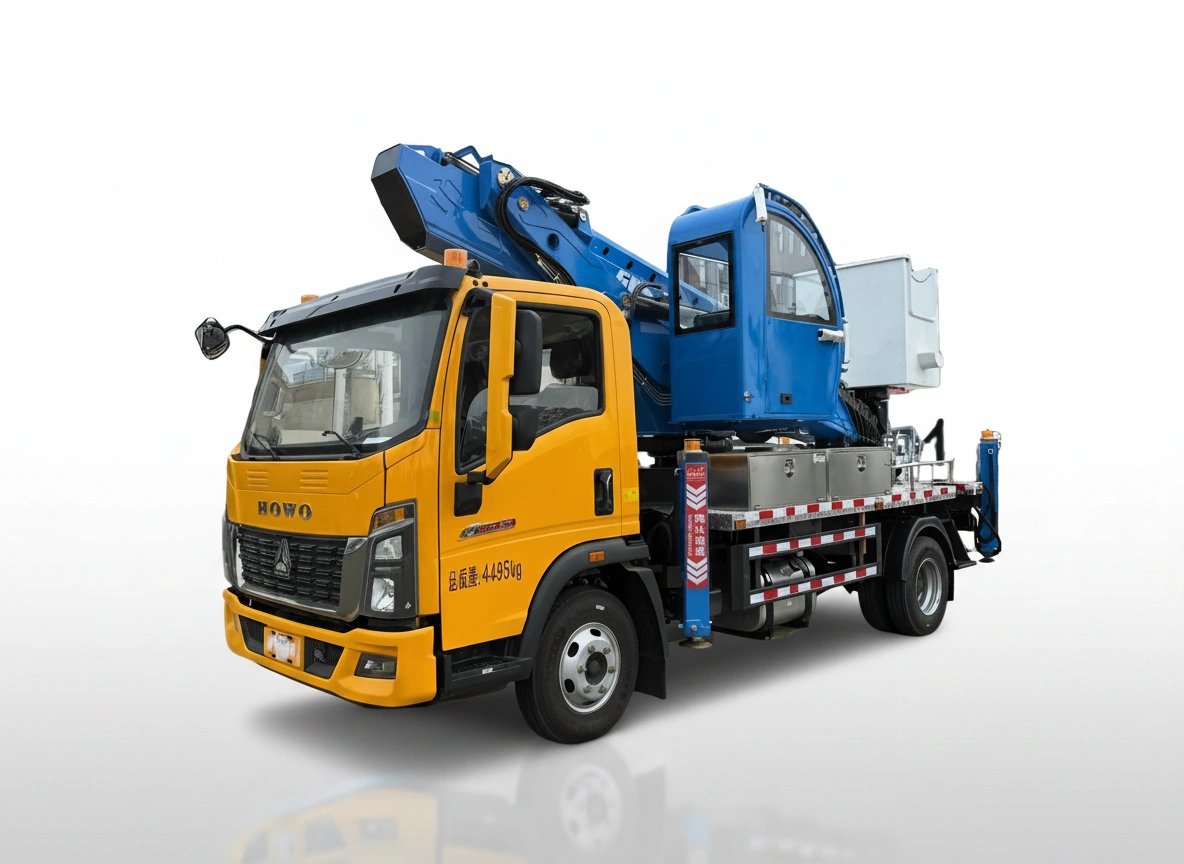

Sinotruk Howo GKS35 Pro, the 33.8 m insulated aerial work platform listed in the current catalog.
Working height is the first filter, because it decides boom sections, chassis size and how much deck space the truck needs. Only one tier has a published specification today, so treat the other rows as a starting point for a conversation rather than a stock sheet: ask what is currently available, then confirm boom sections, bucket load and mounting before you compare prices across suppliers.
| Height class | Boom | Bucket load | Rotation | Mounting | Availability |
|---|---|---|---|---|---|
| 20 m class | Specified per order | Specified per order | Specified per order | Specified per order | Available on request |
| 28 m class | Specified per order | Specified per order | Specified per order | Specified per order | Available on request |
| 33.8 m — Sinotruk Howo GKS35 Pro | 7-section telescopic boom with backup wire rope | 200 kg rated load in the insulated bucket | 360° base rotation | Sinotruk Howo chassis | In catalog |
| 45 m class | Specified per order | Specified per order | Specified per order | Specified per order | Available on request |
The 33.8 m row is the only tier backed by a published specification: model GKS35 Pro, 7-section telescopic boom, 200 kg rated bucket load, 360° rotation, Sinotruk Howo chassis. For any other tier, ask for current availability and confirm the same four columns in writing before you shortlist.
Insulation is a work-method decision, not an upgrade. If nobody in your crew will be within a live-line zone, an insulated bucket adds cost without adding value. If live-line methods are part of the method statement, the bucket is the primary protective element and the required class has to be agreed in writing.
Bucket and boom head of the GKS35 Pro. The catalog unit is supplied with a custom insulated bucket.
Bucket, boom and site procedure together form the dielectric system. Tell the supplier whether your crew will work live, near-live or de-energised only, confirm the insulation class you need, and ask whether an inner bucket liner is part of the specification you are quoting.
This is where a platform stops being a generic lift and starts being a machine your operators can place precisely. On the GKS35 Pro the following configuration is stated on the product page.

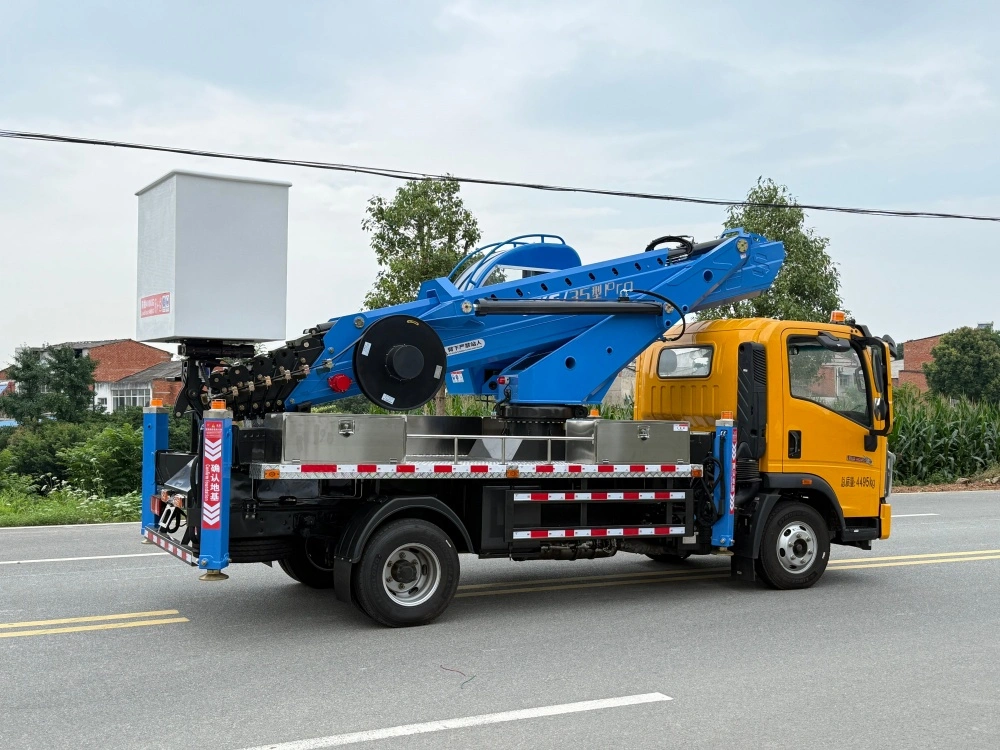

Telescopic boom and X-type outriggers on the Sinotruk Howo GKS35 Pro aerial work platform.
Decision point: buy the control package for the precision your job needs. Stepless proportional control and full rotation matter most when the bucket has to hold a position at the conductor or luminaire while an operator works, and individually adjustable outriggers decide whether the truck can set up on uneven roadside ground at all.

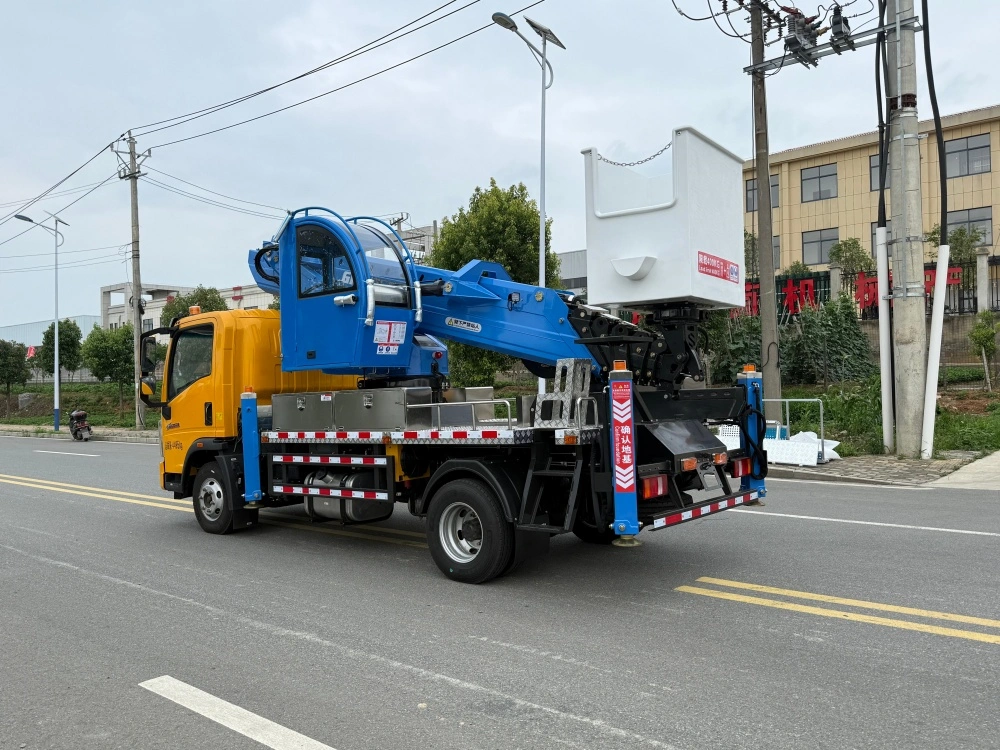

Sinotruk Howo carrier on the GKS35 Pro, with the optional operator cab available for cold and sandstorm protection.
The carrier decides how the truck behaves between jobs: depot access, road speed, fuel consumption and driver comfort. The published configuration for this unit is a 160 HP engine with a 6-speed transmission on a Sinotruk Howo chassis, with air conditioning and ABS as standard equipment and an optional operator cab available for protection against cold and sandstorms.
Chassis and drivetrain details that affect registration, road rules and duty cycle — axle configuration, drive side, wheelbase, chassis weight and emission standard — are not published on the product page. Treat them as quote-stage items: state your market's registration requirements and operating route first, and have the supplier confirm the matching configuration in the offer.
Use this matrix to turn a job description into a shortlist of questions. The page lists electrical, utility and municipal work at height as the intended application, with streetlight installation, electrical line inspection, telecommunication antenna servicing, traffic signal maintenance and high-voltage line repair named as typical tasks.
| Work type | Insulation need | Reach consideration | Decision you are making |
|---|---|---|---|
| Streetlight installation and lamp replacement | Only where live cabling sits inside the work zone | Confirm the column height first, then choose the smallest tier that clears it | Insulation is usually the cost driver here, so specify it only if the method demands it |
| Electrical line inspection | Insulated bucket where live-line methods apply | Reach must clear the conductors with the boom still at a workable angle | Agree the insulation class your work method requires before pricing |
| High-voltage line repair | Insulated bucket, class confirmed with the order | Both height class and boom sections matter; the GKS35 Pro reaches 33.8 m on a 7-section telescopic boom | Verify insulation and the 200 kg rated bucket load together |
| Telecommunication antenna servicing | Usually not required | Reach at the antenna mount height, with rotation for positioning around the mast | Tools and antenna parts count against the bucket load |
| Traffic signal maintenance | Where signals are energised during the work | Short to mid reach; fine positioning matters more than height | Wireless remote with stepless proportional control is the feature to compare |
| Municipal and highway works at height (signage, lighting) | Rarely, for de-energised installations | Check site access, parking space and outrigger footprint before choosing a tier | Individually adjustable X-type outriggers decide whether the setup fits the roadside |

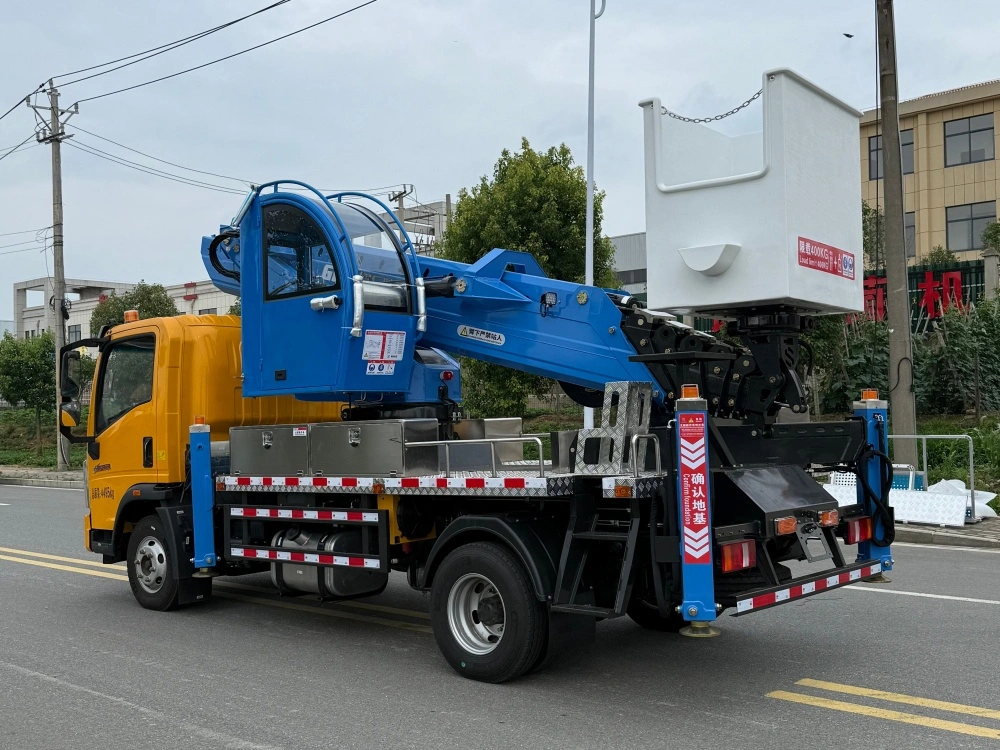

Utility and municipal work at height is the stated application for the GKS35 Pro.
Write one line per planned job: the highest work position, whether the crew will be near or on live conductors, the tools and parts that travel in the bucket, and the ground the truck must set up on. Those four lines turn into the height class, the insulation requirement, the load figure and the outrigger and chassis questions you send with a quote request.
Then check the load path: the platform is rated at 200 kg in the insulated bucket, and the product description notes capacities suited for one or two operators with tools. If a job includes heavy hardware, that calculation should be done before the height class is fixed, not after.
This is a quote-based product line: there is no online price, cart or checkout, and every configuration is confirmed against your job before an offer is issued. The same path covers the standard 33.8 m GKS35 Pro and custom builds such as a specified insulation class on the insulated bucket or the optional operator cab.
List the highest work position, whether work is live, near-live or de-energised, the tools that travel in the bucket, and the ground conditions the truck must set up on.
Receive the 33.8 m GKS35 Pro specification against your brief, or a confirmed answer on any other height class you asked about, with boom, bucket load, rotation and mounting stated in writing.
Agree the carrier, cab option, insulation class and any custom bucket requirements, then issue the order against the confirmed configuration.
Keep adjacent product options together for a faster catalog comparison.
Source this 8-ton Dongfeng crane from a reliable truck crane manufacturer. Featuring a 5-section boom for versatile lifting, ideal for global truck crane supplier needs.
View productboth terms describe truck-mounted lifting equipment. on this page an aerial bucket truck means a truck-mounted aerial work platform: a hydraulic boom carries an insulated or non-insulated bucket to the working position, and the carrier drives the machine to site under its own power. truck-mounted cranes and other boom-equipped trucks are separate machine categories with different duties.
the gks35 pro has a maximum working height of 33.8 metres on a 7-section telescopic boom, with a backup wire rope for safe return. the platform rotates 360 degrees at the base and is mounted on a sinotruk howo chassis.
the rated load in the insulated bucket is 200 kg. the product description also notes load capacities suited for one or two operators with tools, so tools, hardware and antenna parts should be counted against that figure when a job is planned.
it depends on the work method, not the job title. if the crew will work live or near live conductors, an insulated bucket is required and the insulation class has to be agreed with the order. for streetlight, signage or antenna work with no live-line exposure, a non-insulated bucket is normally the practical choice.
x-type hydraulic outriggers, individually adjustable for uneven ground, stabilise the chassis before the boom is raised. control is by wireless remote combined with an electro-hydraulic proportional valve for stepless speed control, with remote and manual operating modes stated for the machine. an emergency power source, gravity sensor and anemometer are part of the standard configuration.
send your job details through the contact page. there is no online checkout for this product line: the path is a quote request, with the configurable items such as the custom insulated bucket, insulation class, optional operator cab and carrier details confirmed in the offer.
